Product Description
This is a complete 1/4 Scale V8 Engine kit ready for assembly.

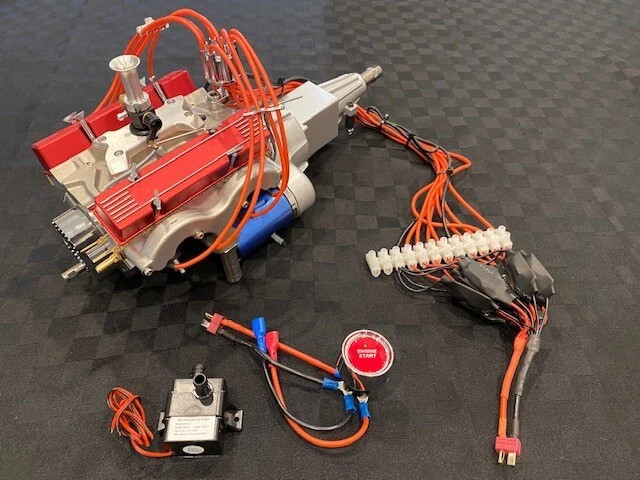

**Please note the Transmission included is as per picture 3**
Video of Engine Running: V8 SINGLE CARB RUNNING IN 1934 FORD
To see the instruction manual click below:
Videos from Instructions below:

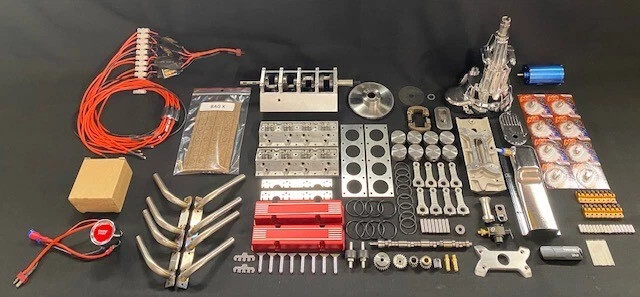

Kit Includes:
*Engine Block with pressed/water proofed sleeves

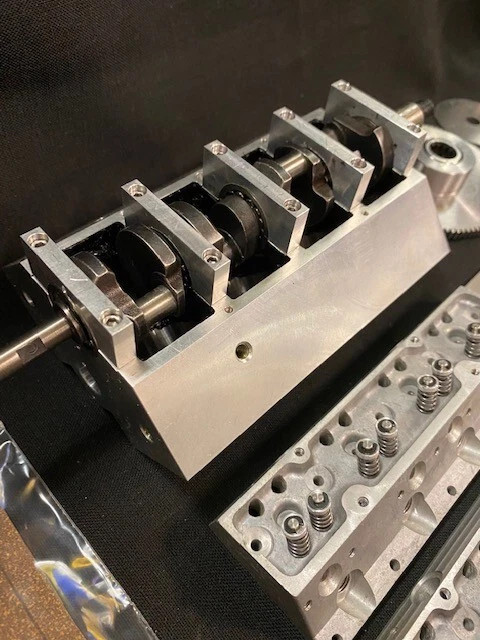

*Steel Crankshaft Installed with bearings/caps
Includes detailed instructions with pictures of each step on a USB and all parts/screws to build a fully functional single carburetor 1/4 Scale V8 engine including water pump and engine start button !
This kit is an advanced hobby product and some level of engine model building experience is required to assemble this kit.
You will also require various tools such as Hex & Socket drivers , dremel or rotary tool , various pliers , silicone gasket sealant , thread locker , grease/oil and other misc tools.
To operate the engine you will need to mount it on a solid platform and will require a water tank/radiator , fuel tank and 2x 11.1v Lipo batteries (We can assist with these please email for information/pricing)
We also have an optional Supercharger kit available in our Accessories Section which is a direct fit on this engine.
While assembling engine if you get stuck on any Step we are happy to assist and answer all questions. We also offer an assembly service which we can build the engine and run it in for you from any point (Cost will vary depending on which step you are upto)
Engine will take approx 6-10 hours to assemble depending on your experience.
Engine features:
Steel crankshaft
Steel camshaft
*Black or Gold Anodized Roller Rockers - Your Choice

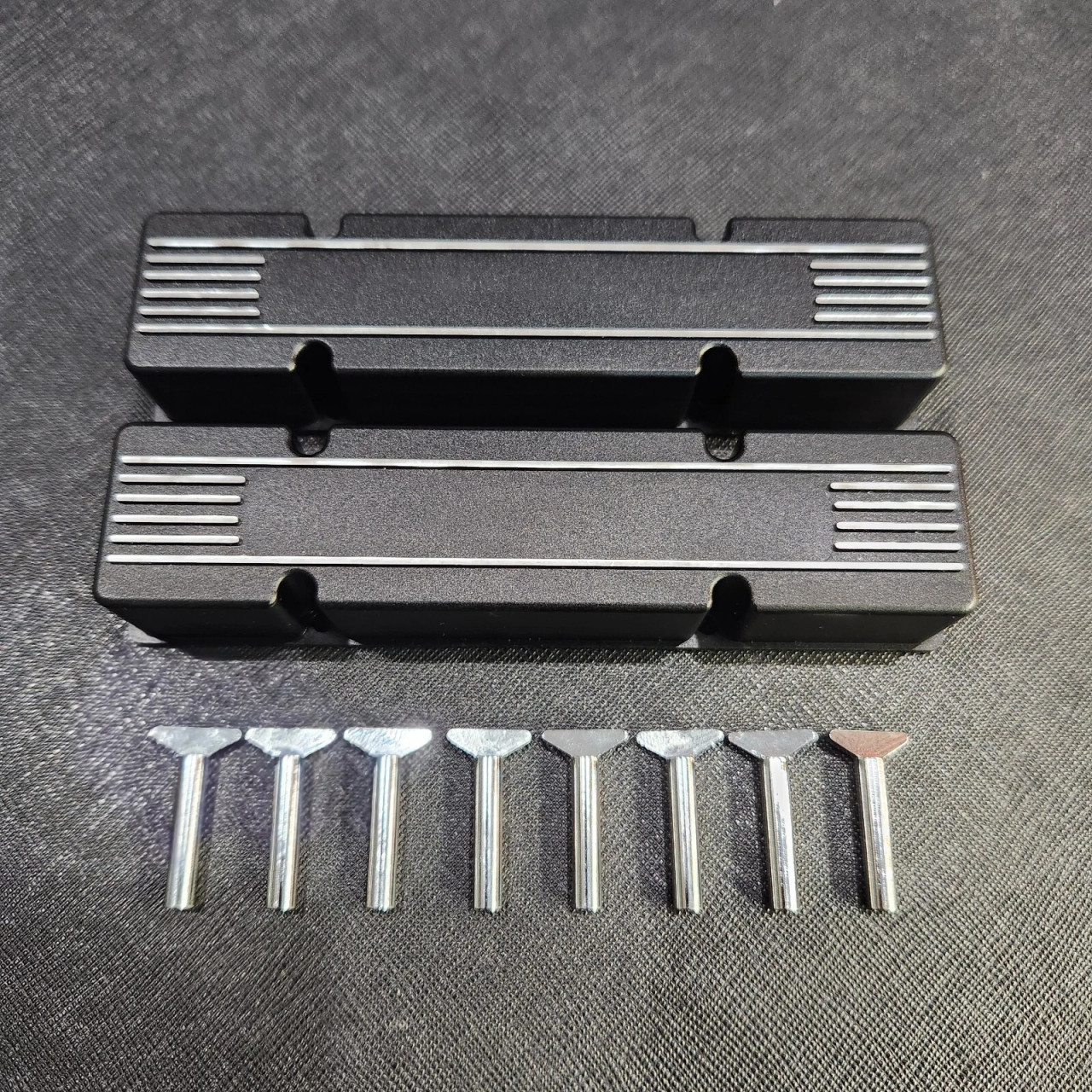

*Black or Red Rocker Covers - Your Choice
*Black or Chrome Wing Nuts - Your Choice
12v Water pump
12v starter motor
Chrome timing cover
Aluminium oil pan (Not polished)
Aluminum engine block

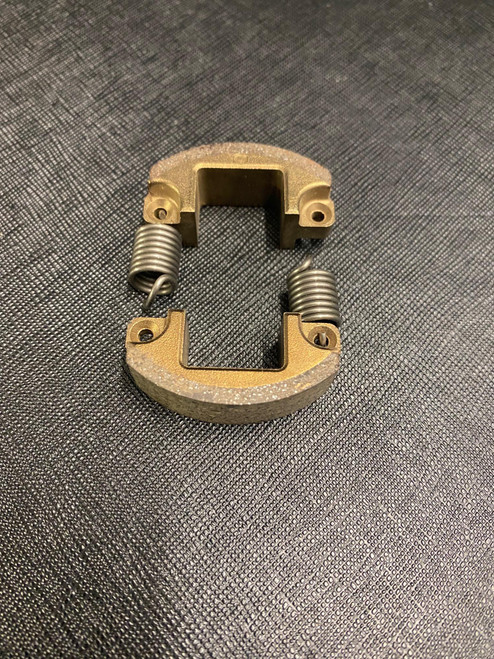

Centrifugal clutch
Single carburetor
2 piece Aluminium Transmission (Not Polished)
Zoomie headers
8000-12,000 rpm approx (depending on configuration and tune)
3-5 hp approx (depending on configuration and tune)

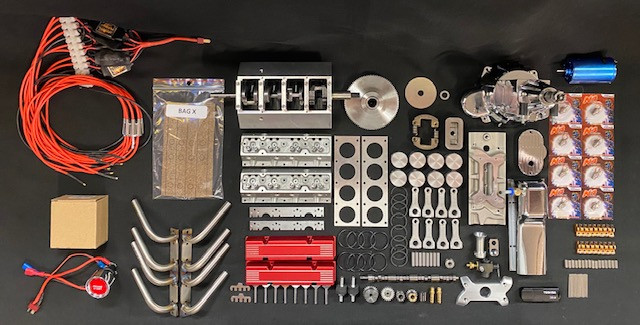

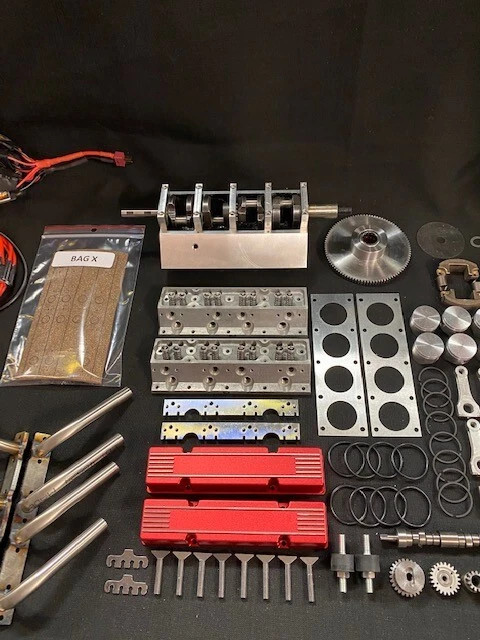

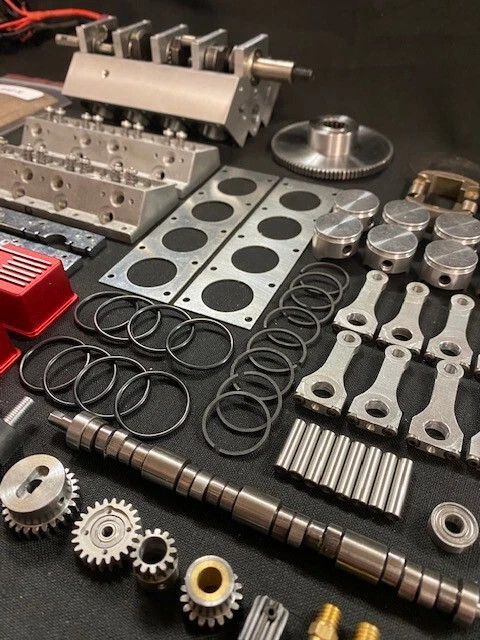

**Picture of assembled engine is there to show final product , the headers included in this kit are Zoomie style which is shown in the parts pictures**
Returns and Warranty:
There is no warranty or returns on this item as it is a high grade hobby product and not a toy.
This engine Kit has been checked and packed and all parts have been triple checked.
This engine will start once assembled as long as all instructions are followed carefully.
Please don’t hesitate to contact us with any questions
